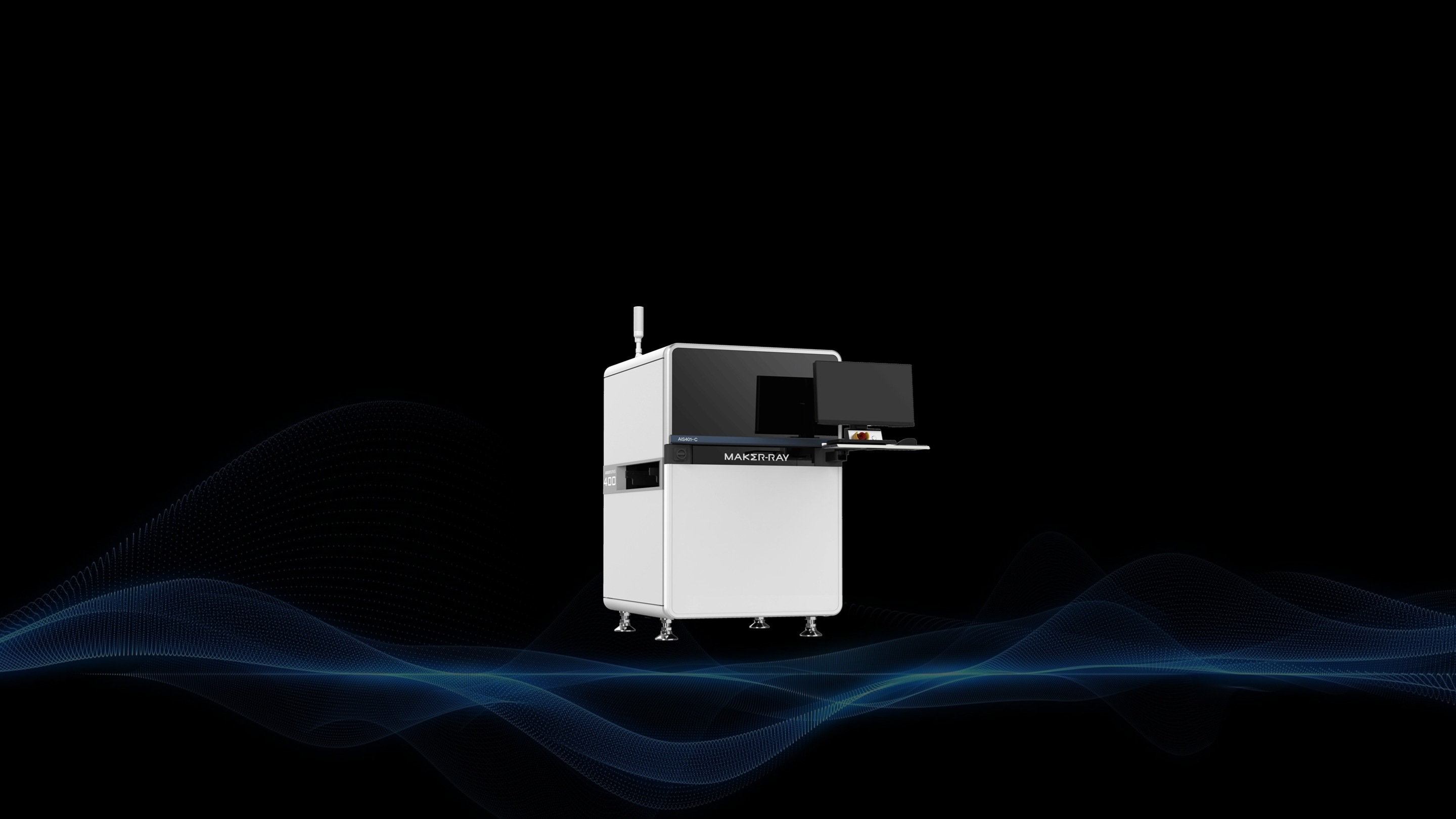

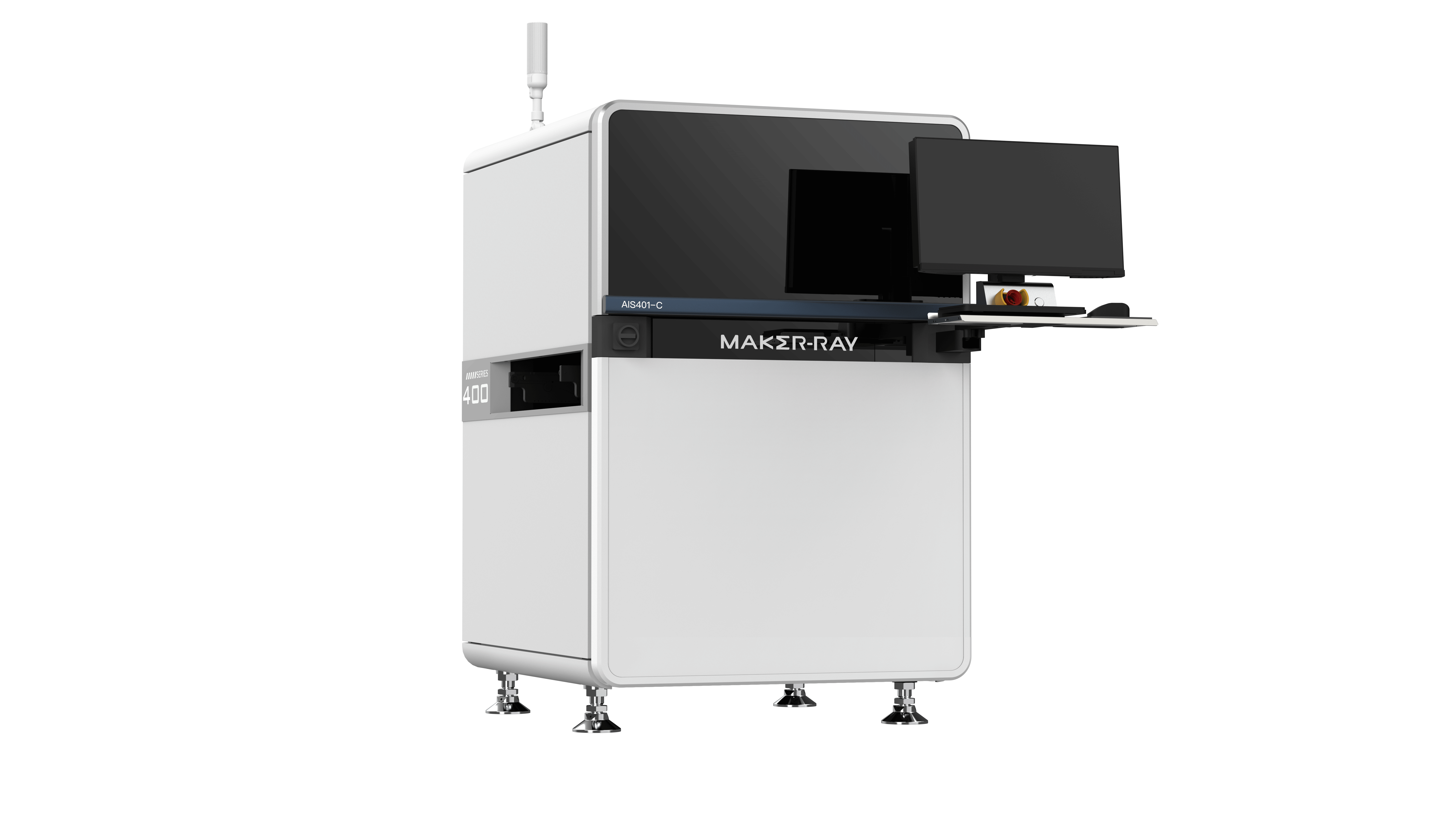

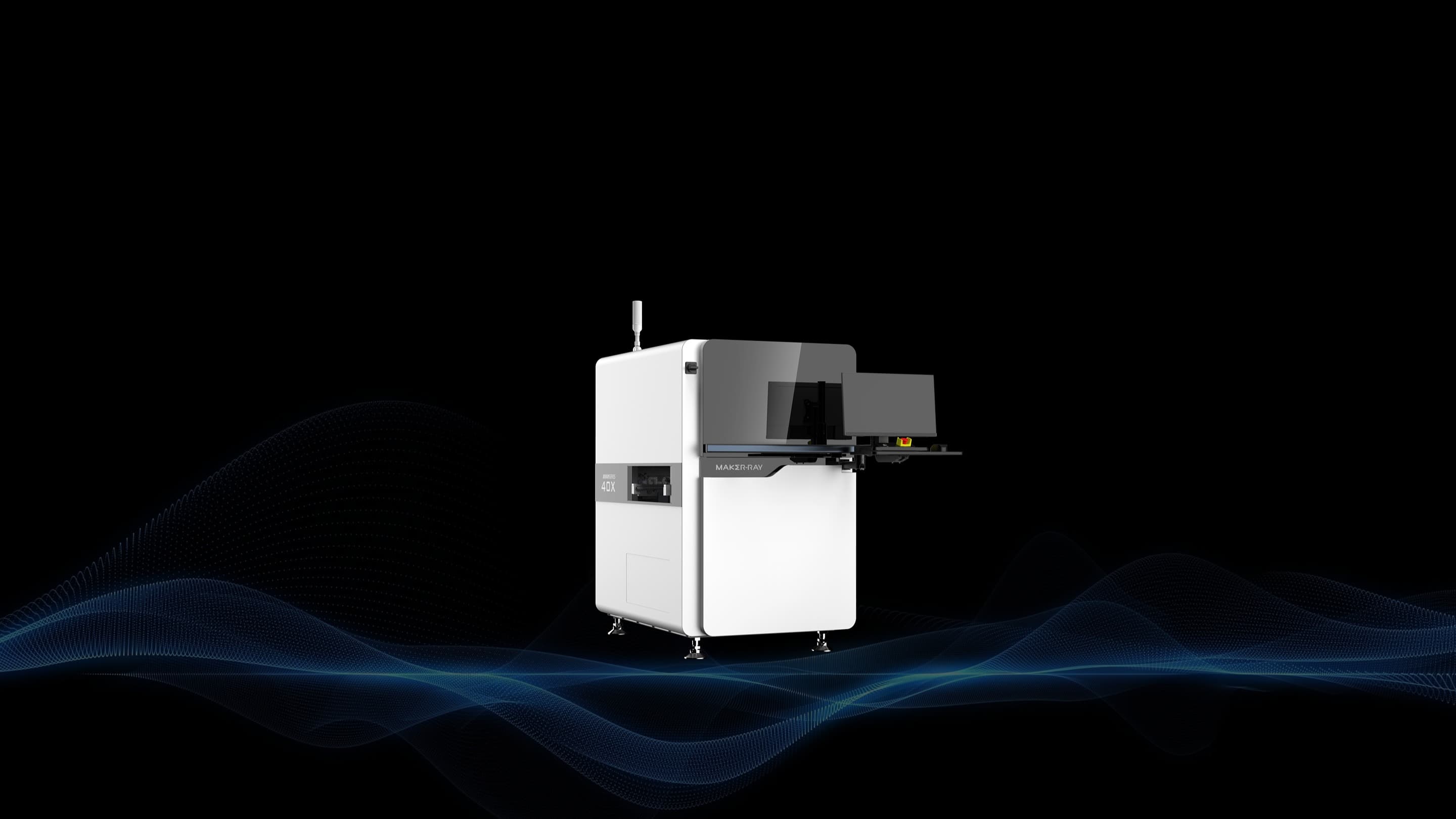

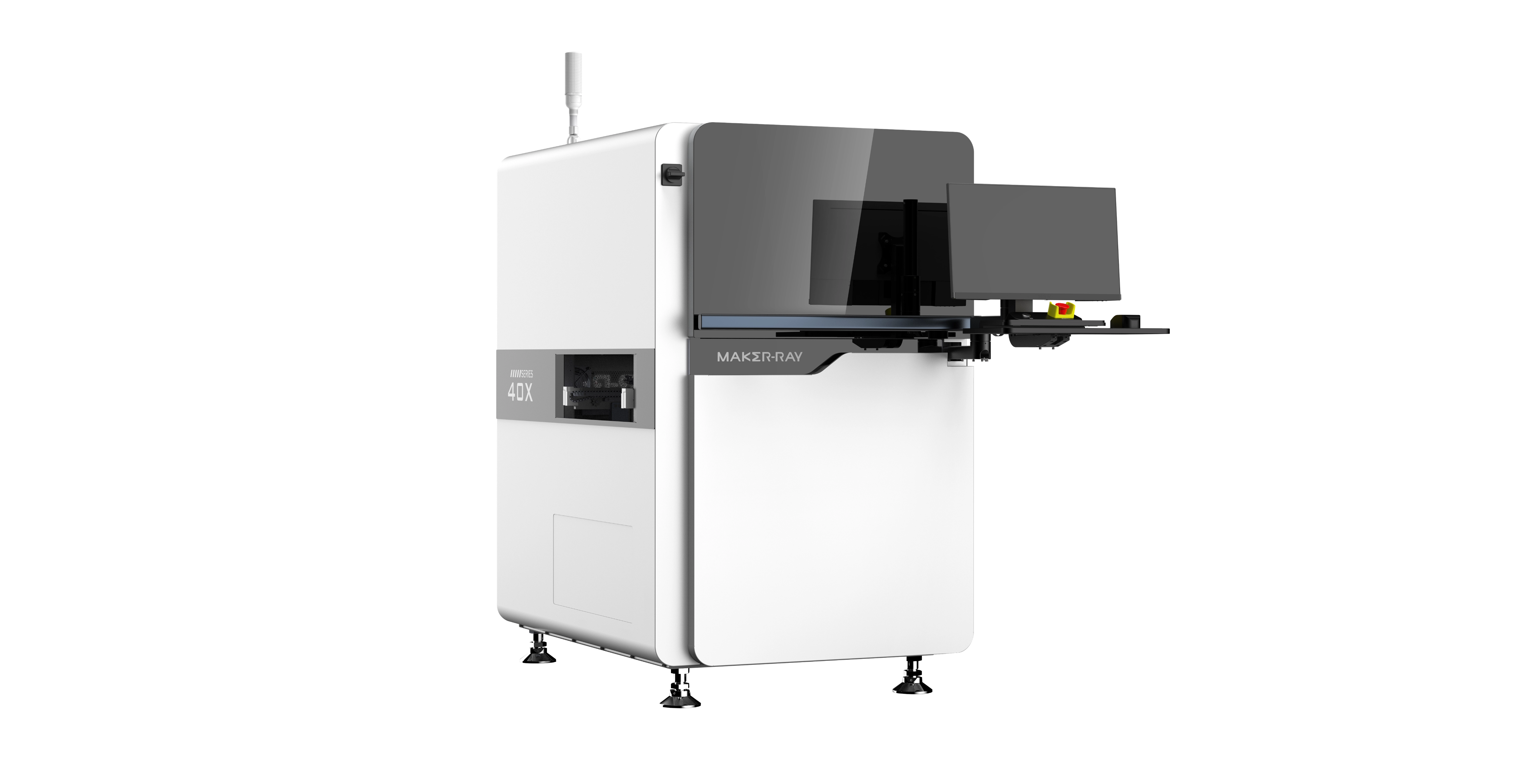

Inline PCBA Single-sided Coating Inspection
AIS40X-C-HW
Intelligently lock the coating boundary and automatically identify the coating area
AI super-resolution algorithm to realize inspection of small bubble
Glue numerical visualization, unified coating process
AI intelligent algorithm support fast programming
Adopting deep learning polygon algorithm, it can realize automatic programming, whole board programming, intelligently lock the coating boundary, automatically identify the coating area for faster programming speed.
Embedded with multiple coating algorithms
Professional bubbles, scattered points, foreign material and other intelligent algorithms, automatically identify defects in the area to be tested, no personnel debugging is required, and the detection ability is strong.
Coating data visualization
Support measurement of glue width and thickness (optional), data visualization, to meet the standardization and standardization management needs of coating process quality inspection.
Inspection case
Specification
5Mp
Camera
36*30mm
FOV
15um
Resolution
Measurable board size
50*50mm-510*460mm
Camera
5Mp color high speed camera.
Light Source
UV+W
FOV
36mm*30mm
Resolution
15um
Industrial Computer
CPU：Intel i7
Graphics：Nvidia GTX1050Ti
Memory：32G DDR4
Storage：256G SSD + 2T HDD
Network：1000M network card
Graphics：Nvidia GTX1050Ti
Memory：32G DDR4
Storage：256G SSD + 2T HDD
Network：1000M network card
Display
23.8 inch
Operating System
Ubuntu 18.04 LTS 64bit
Dimension and Weight
(L*H*W)1015*1541*1166mm，728Kg
Power Supply and Power
AC 220V. Rated power 380W
Environmental Requirements
Temperature: 10~45℃. Humidity: 30~85%RH
Note: The above parameters are standard configurations. If there are special requirements, they can be evaluated and customized. The information is for reference only. If there are any changes, the actual product shall prevail.
