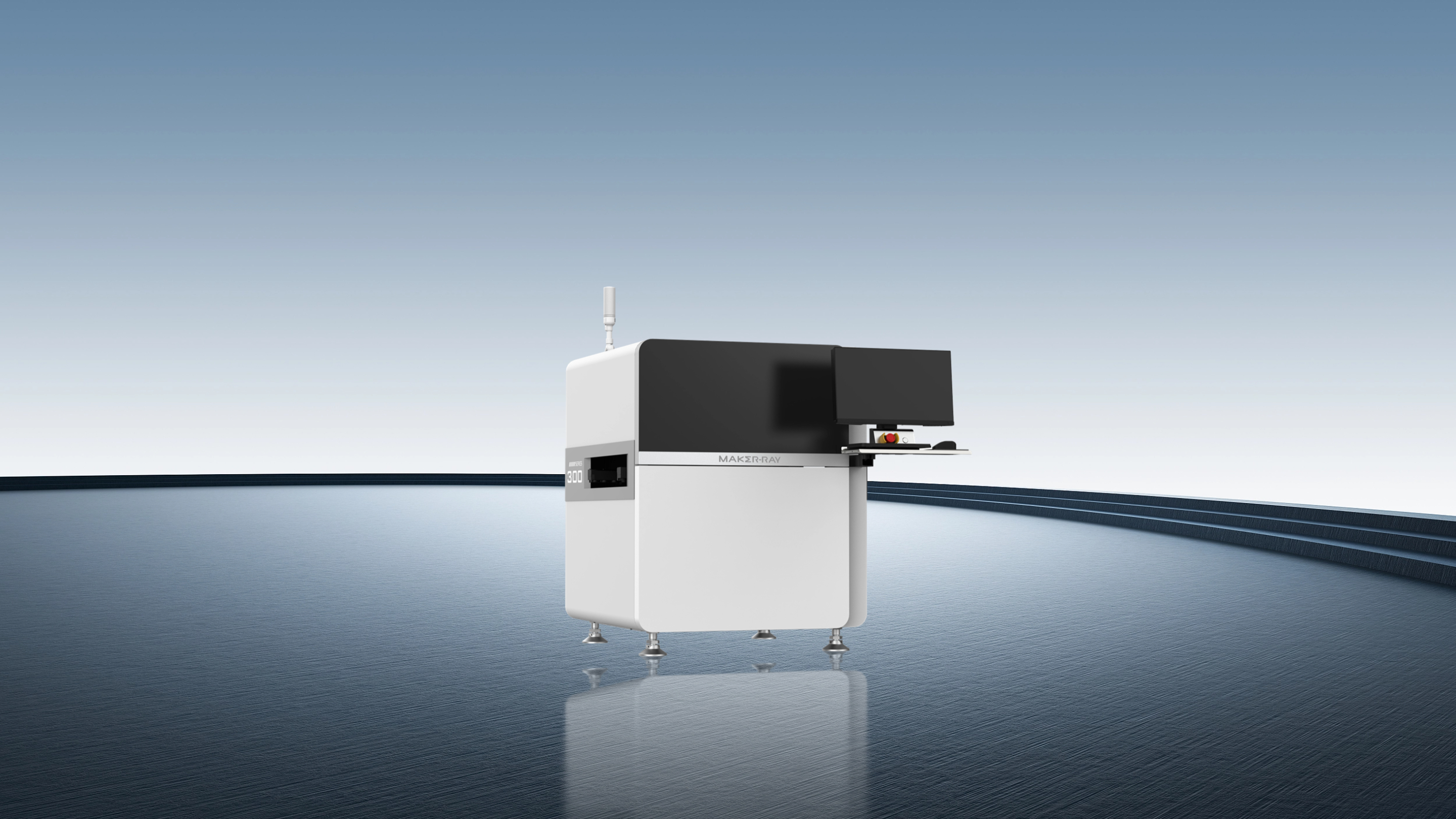

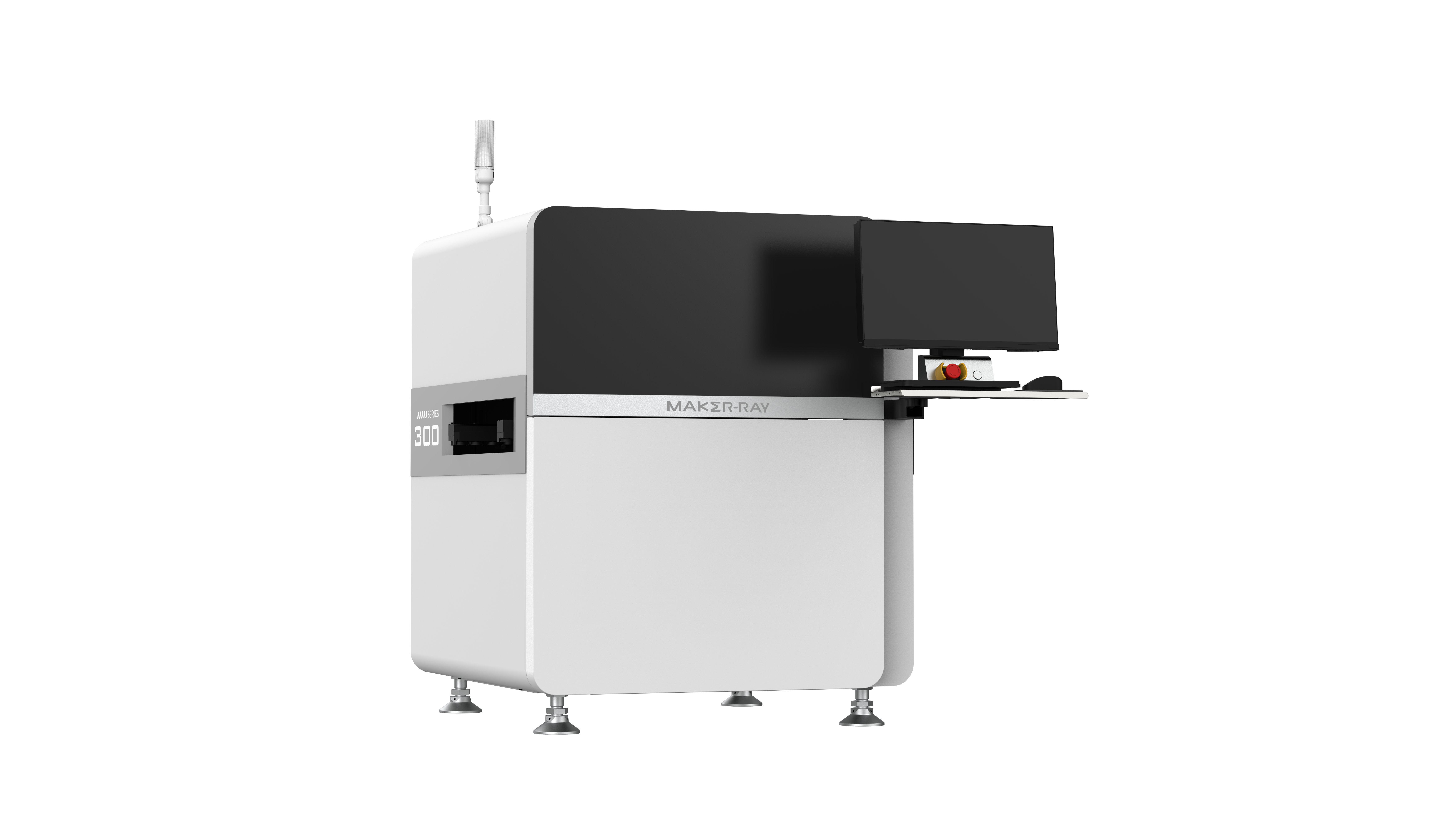

Inline THT Solder Automated Optical Inspection
AIS30X-HW
AI-powered algorithms covering a wide range of solder inspection criteria
Intelligent programming for rapid identification of solder joints across the entire board
Extracts defect features of voids from multiple dimensions, ensuring high resistance to interference
Professional multi-color integral light source
Different angles of RGB light source irradiation, accurately reflect the slope information of the surface of the object, so that the solder joint layer is more obvious, clearly showing the solder defects.
AI zhìnéng suànfǎ, zhìnéng shìbié zhěng bǎn hàn diǎn jīyú dà shùjù +AI shēndù xuéxí suànfǎ xùnliàn, shíxiàn zhěng bǎn hàn diǎn zhìnéng shìbié, bìng pèizhì jiǎncè suànfǎ, tiáojié cānshù. 57 AI-powered algorithms for intelligent recognition of solder joints across an entire board
Based on big data +AI deep learning algorithm training, realizing Intelligent identification of solder joints of the whole board, and configuring detection algorithms to adjust parameters.
Stable identification of complex items
The model based on big data training, which can correct the alarm caused by the diversified deviation of solder joints, and solve the problem of missing and false alarm caused by the large change of solder joints components and the easy effected of pins and devices.
Inspection case
Specification
12Mp
Camera
60*45mm
FOV
15um
Resolution
Measurable board size
Three section track: 50*50-350*400mm
Single section track: 50*50-450*400mm
Camera
12Mp color high speed camera.
Light Source
High brightness LED open plane light + High brightness low angle light
FOV
60mm*45mm
Resolution
15um
Inspection Speed
0.23sec/FOV
Industrial Computer
CPU：Intel i5
Graphics：Nvidia GTX1050Ti
Memory：32G DDR4
Storage：256G SSD + 2T HDD
Network：1000M network card
Graphics：Nvidia GTX1050Ti
Memory：32G DDR4
Storage：256G SSD + 2T HDD
Network：1000M network card
Display
23.8 inch
Operating System
Ubuntu 18.04 LTS 64bit
Dimension and Weight
（L*H*W）1100*1340*1161mm，780Kg
Power Supply and Power
AC 220V. Rated power 520W
Environmental Requirements
Temperature: 10~45℃. Humidity: 30~85%RH
Note: The above parameters are standard configurations. If there are special requirements, they can be evaluated and customized. The information is for reference only. If there are any changes, the actual product shall prevail.
12Mp
Camera
60*45mm
FOV
15um
Resolution
Measurable board size
50*50~550*650mm
（Large board mode：Max690x650mm）
（Large board mode：Max690x650mm）
Camera
12Mp color high speed camera.
Light Source
High brightness LED open plane light + High brightness low angle light
FOV
60mm*45mm
Resolution
15um
Inspection Speed
0.23sec/FOV
Industrial Computer
CPU：Intel i5
Graphics：Nvidia GTX1050Ti
Memory：64G DDR4
Storage：256G SSD + 2T HDD
Network：1000M network card
Graphics：Nvidia GTX1050Ti
Memory：64G DDR4
Storage：256G SSD + 2T HDD
Network：1000M network card
Display
23.8 inch
Operating System
Ubuntu 18.04 LTS 64bit
Dimension and Weight
（L*H*W）1125*1340*1411mm，870Kg
Power Supply and Power
AC 220V. Rated power 520W
Environmental Requirements
Temperature: 10~45℃. Humidity: 30~85%RH
Note: The above parameters are standard configurations. If there are special requirements, they can be evaluated and customized. The information is for reference only. If there are any changes, the actual product shall prevail.
