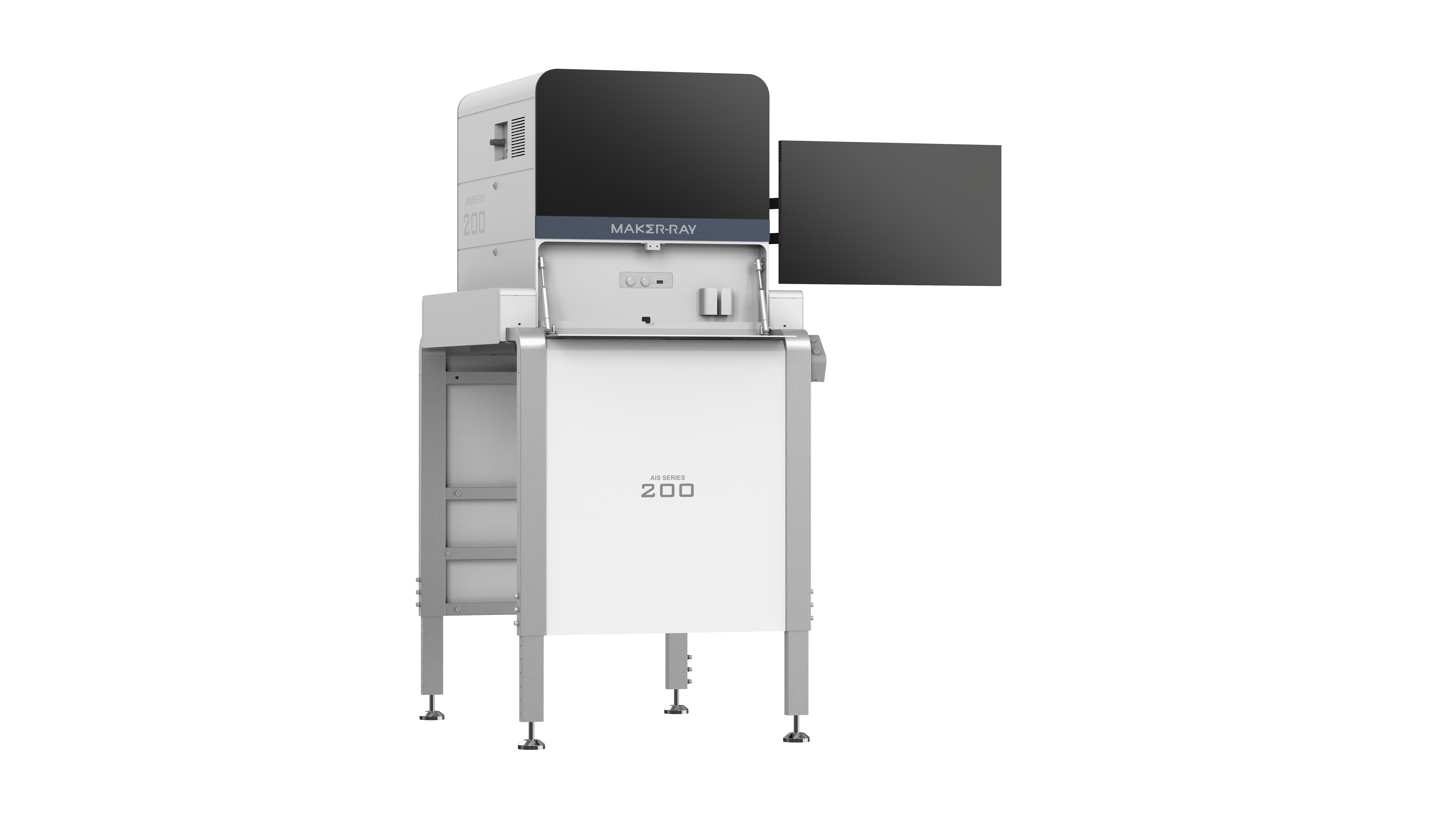

Inline PCBA AOI for THT Component
AIS20X-HW
The market share has ranked first in the industry for five consecutive years
Cross-type structure, easy to install
Excellent light source solution compatible with a variety of through-hole components inspection
AI programming saves time, people, and costs
Based on an AI deep learning algorithm, a one-click search for capacitors, diodes, through-holes, and other components, intelligent identification
of parameters, and one-click auto programming increased programming speed.
of parameters, and one-click auto programming increased programming speed.
High detection, low false call
Relying on massive sample learning, it has strong generalization ability and be able to extract more essential and subtle features of complex
detection items, mprove recognition ability for subtle feature differences, and inspection accuracy.
detection items, mprove recognition ability for subtle feature differences, and inspection accuracy.
AI auto training, constantly upgrading detection capabilities
The equipment can conduct AI training independently, so the equipment can quickly learn new and unique devices,
iterate identification capabilities, and improve detection capabilities.
iterate identification capabilities, and improve detection capabilities.
Inspection case
Specification
20Mp
Camera
400*266mm
FOV
75um
Resolution
Measurable board size
400*266mm
Camera
20Mp color high speed camera.
Light Source
High brightness LED open plane light
+ High brightness low angle light
+ High brightness low angle light
FOV
400mm*266mm
Resolution
75um
Industrial Computer
CPU：Intel i5
Graphics：Nvidia GTX1050Ti
Memory：16G DDR4
Storage：256G SSD + 2T HDD
Network：1000M network card
Graphics：Nvidia GTX1050Ti
Memory：16G DDR4
Storage：256G SSD + 2T HDD
Network：1000M network card
Display
23.8 inch
Operating System
Ubuntu 18.04 LTS 64bit
Dimension and Weight
(L*H*W) 715*(1315-1700 Adjustable)*(730-940 Adjustable)mm，100KG；
Connecting Rod: Short (inner width 730-940 adjustable) mm.
Long(inner width 960-1150 adjustable) mm
Connecting Rod: Short (inner width 730-940 adjustable) mm.
Long(inner width 960-1150 adjustable) mm
Power Supply and Power
AC 220V. Rated power 200W
Environmental Requirements
Temperature: 10~45℃.
Humidity: 30~85%RH
Humidity: 30~85%RH
Note: The above parameters are standard configurations. If there are special requirements, they can be evaluated and customized. The information is for reference only. If there are any changes, the actual product shall prevail.
31Mp
Camera
520*390mm
FOV
80um
Resolution
Measurable board size
520*390mm
Camera
31Mp color high speed camera.
Light Source
High brightness LED open plane light + High brightness low angle light
FOV
520*390mm
Resolution
80um
Industrial Computer
CPU：Intel i7
Graphics：Nvidia GTX1050Ti
Memory：24G DDR4
Storage：256G SSD + 2T HDD
Network：1000M network card
Graphics：Nvidia GTX1050Ti
Memory：24G DDR4
Storage：256G SSD + 2T HDD
Network：1000M network card
Display
23.8 inch
Operating System
Ubuntu 18.04 LTS 64bit
Dimension and Weight
(L*H*W) 715*(1315-1700 Adjustable)*(730-940 Adjustable)mm，100KG；
Connecting Rod: Short (inner width 730-940 adjustable) mm.
Long(inner width 960-1150 adjustable) mm
Connecting Rod: Short (inner width 730-940 adjustable) mm.
Long(inner width 960-1150 adjustable) mm
Power Supply and Power
AC 220V. Rated power 200W
Environmental Requirements
Temperature: 10~45℃. Humidity: 30~85%RH
Note: The above parameters are standard configurations. If there are special requirements, they can be evaluated and customized. The information is for reference only. If there are any changes, the actual product shall prevail.
