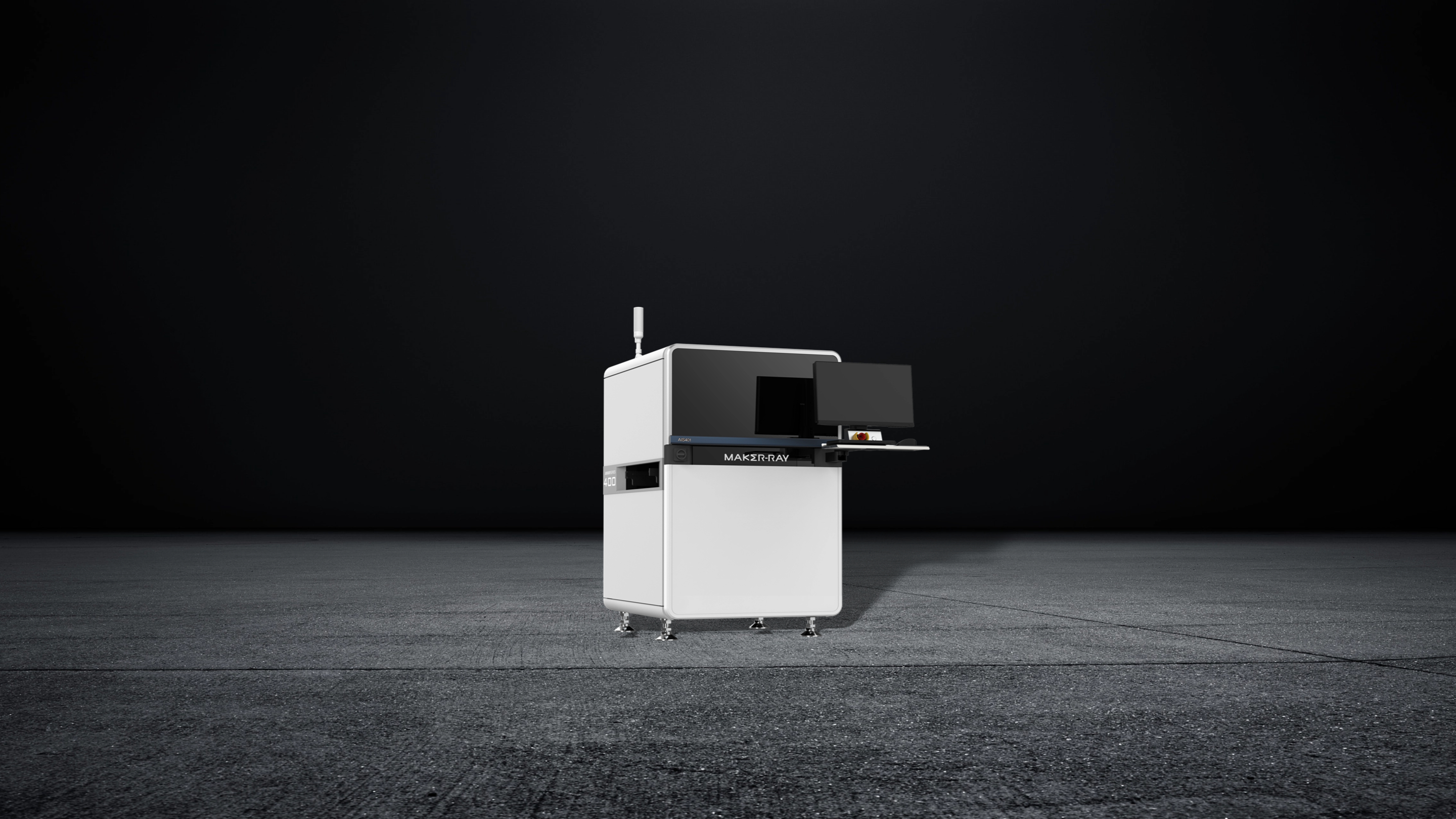

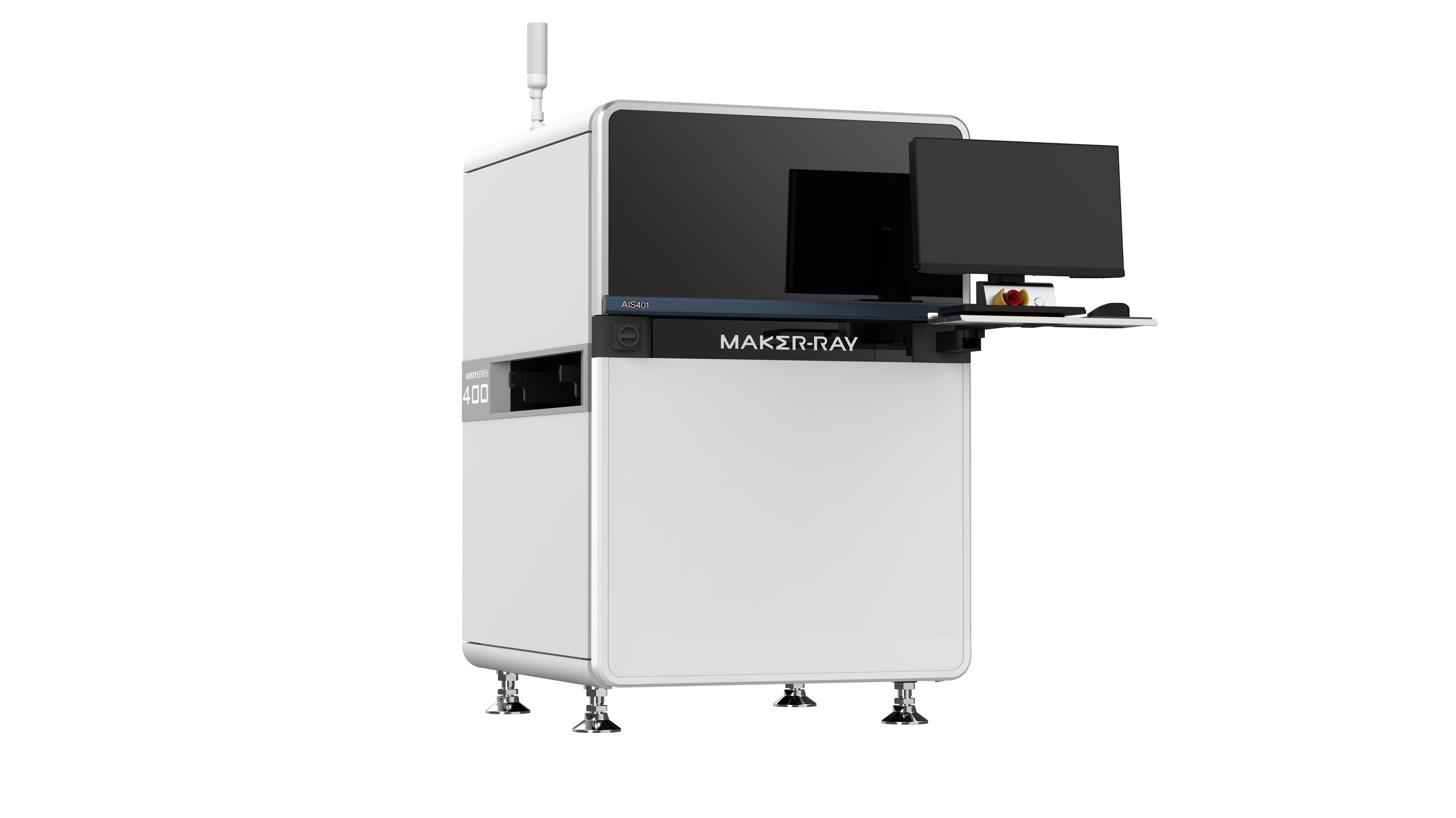

Inline SMD Automated 2D Optical Inspection
AIS40X-HW
AI intelligent detection, the effect is significantly improved
Intelligent very simple fast compilation, say goodbye to tedious programming
Higher detection accuracy, to meet the detection of small devices
Specially developed light source system
Independently developed multi-channel light source, compatible with devices, patches, solder joints and other different detection items, effectively improve the image saturation and brightness, imaging effect is better.
Strong anti-interference ability
AI combined algorithm used to detect solder joints, copper exposure, cold soldering, and other defects. It is not affected by the difference in the shape and color of soldering due to solder paste brand, furnace temperature, and other conditions, and it has higher reliability.
OCR recognizes silk screen characters with higher accuracy
Using intelligent positioning and end-to-end character recognition solutions. No manual preprocessing is required, and programming is simple. It has high character recognition accuracy for blurred/dirty silk screens, close characters, and dark scenes.
Inspection case
Specification
12Mp
Camera
40*30mm
FOV
10um
Resolution
Measurable board size
[object Object]
Camera
12Mp color high speed camera.
Light Source
High brightness LED open plane light + High brightness low angle light
FOV
40mm*30mm
Resolution
10um
Industrial Computer
CPU：Intel i5
Graphics：Nvidia GTX1050Ti
Memory：32G DDR4
Storage：256G SSD + 2T HDD
Network：1000M network card
Graphics：Nvidia GTX1050Ti
Memory：32G DDR4
Storage：256G SSD + 2T HDD
Network：1000M network card
Display
23.8 inch
Operating System
Ubuntu 18.04 LTS 64bit
Dimension and Weight
(L*H*W)1015*1541*1166mm，777Kg
Power Supply and Power
AC 220V. Rated power 380W
Environmental Requirements
Temperature: 10~45℃. Humidity: 30~85%RH
Note: The above parameters are standard configurations. If there are special requirements, they can be evaluated and customized. The information is for reference only. If there are any changes, the actual product shall prevail.
